                                                 A few arguments about CCAW

Expession method of model



Expession method of ccaw model



CCA - 15H - Φ0.08



CCA=Copper Clad Aluminum



15H=the copper layer volume ratio of 15(copper clad aluminum only the 10H&15H at



present)



Φ0.08=nominal diameter



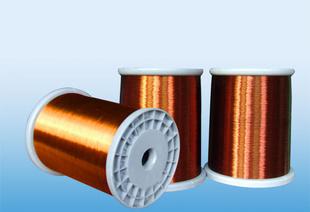

Expression method of ccaw model



CCAW=Copper Clad Aluminum Wire



2EI/AIW=polyester(imide)overcoated with polymideimide enameled wire



 (UEW=polyester enameled copper wire)



 Φ0.08=nominal diameter



Point 1



When the DC resistance under the same conditions, the weighth of CCAW is QAW



(copper wire) half.



Evidence 1: DC resistance of CCAW 1.5times bigger than QAW. In other words.



When DC resistance under the same  conditions, the volume of CCAW must be bigger 1.5



times than QAW



Evidence 2: the density of CCAW is QAW 1/3



These two enidences determine the point 1



The extension of point 1



Under the same conditions of CCAW'S length, transformer core or number of turns,



The wire diameter of CCAW is thicker 1.225 times than QAW



Point 2：



In the use of high frequency state, if we want to make the same effort, wo can keep the wire



diamter of CCAW be thinner 1.225 times than QAW, or even we can keep the sectional area



unchange



We changed the wire piles from single to double or several, this approach base on the high



frequency current skin-effect



That is: when the alternating  current pass through the conductor, the induction effect  can



cause an uneven ditribution of current  the closer to the conductor surface , the density is



more higher. This phenomennon is called "skin effect"



When the high frequency current pass through the conductor,we can think the current only



pass through the thinner layer of the wire surfance



this is the same effect with the way of reducing the  sectional area , increasing the resistance.



In the case  of hardly pass through the central part ,we can get rid of this part in theory to



save the cost we really have changed the material from copper to aluminum. The effect should



be better than before



 tha is to say: we only need thicker the wire ,  no need to insist on the view of  1.225tims



between CCAW & QAW



Even  , we can make sure that under the conditions of unchanged sectional area , we change



the wire from single pile to double or several



Point 3



copper density 8.9G/cm3,  AL density 2.7G/cm3, if the volume ratio between copper and



ccaw is 15%



then the weighth ratio =(8.9*0.10)/（2.7*0.9）=0.366  =2.679/7.321



he density ratio=（2.7*0.9+8.9*0.1）/8.9=0.373≈1/3



point 4



In the case of CCAW's unit pirce is same with QAW, we also can save the cost 50%



because the standard weigth can reduce 50% or above during using the CCAW



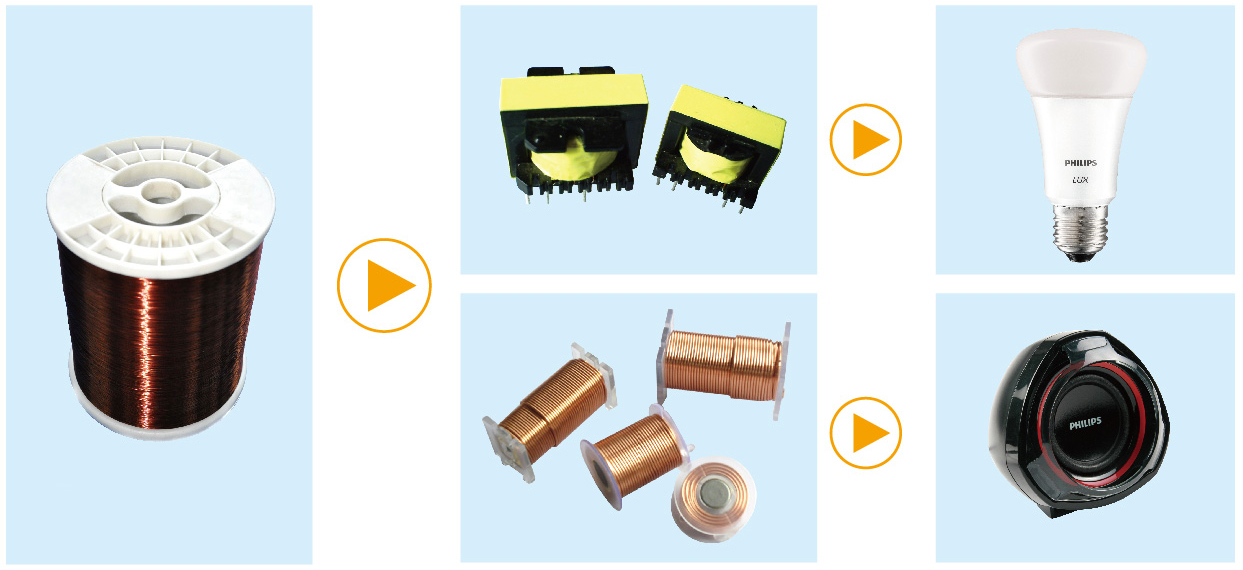

In one word, because of these above reasons , to promote the use of CCAW will have great



benefits in all directions
