◆Product model:
UEW,PIW,AIW, EI/AIW, SEIW, SBUEW,PEI/PAI. we can make different kinds
of production based on customers' requirements.
◆Range:
Sectional area below cross-sectional area was in 2.5mm², width of 0.500-3.500 mm,
thickness 0.06-0.50 mm, maximum width the thickness ratio of 15.
◆Applications :

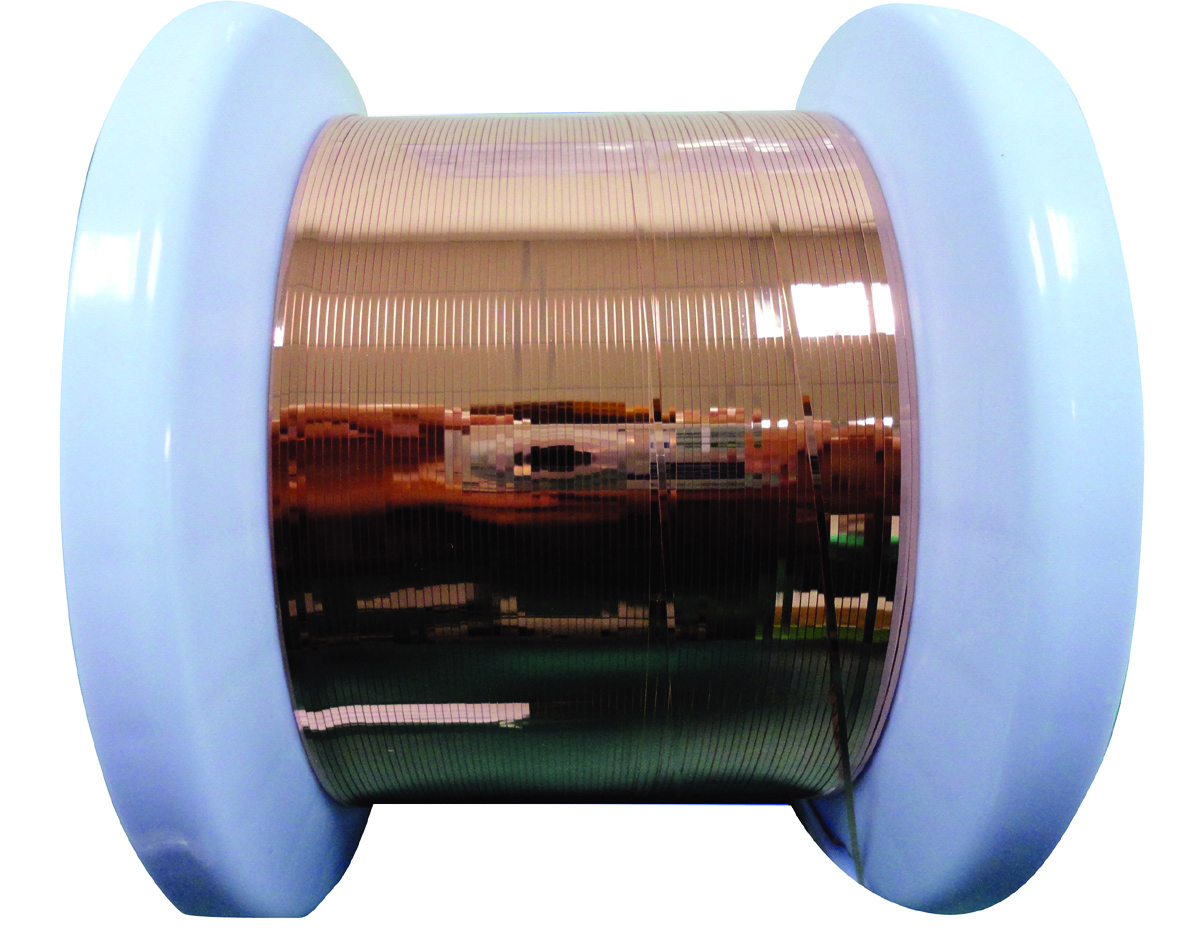

Flat wire is for rectangular enameled wire conductor cross section.Compared with
round wire, flat wire has incomparable advantages and features, has been applied in many

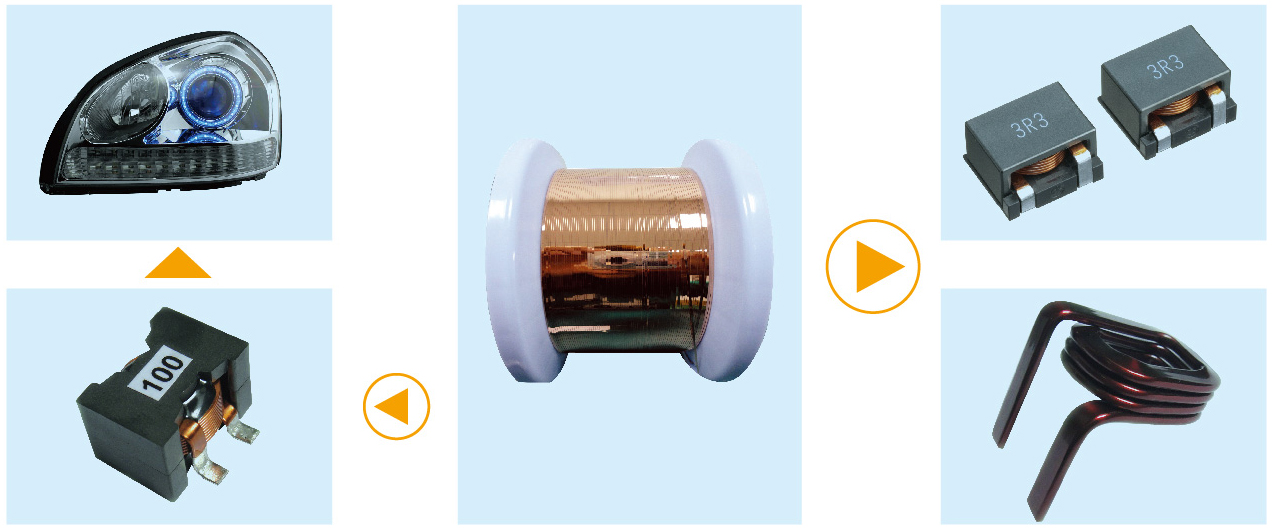

fields. High power small drive motor; Power transformer, such as flat inductance coil; High
fidelity stereo speaker voice coil; MO we coil; SMD SMT inductance; Filter; Large current power
inductor; Choke coil; Miniature transformer; Sensor coil; TV Power coil, Adapter coil.
◆Product features:
1.High tank full rate, also the performance of the coil volume smaller, lighter weight;
In volume under the same conditions, the coil performance better, more efficient.
2.Has a larger surface area than the circular conductor enameled wire, condition,can
reduce coil
3.Good heat dissipation, electromagnetic effect.
